Introduction to the Command Line Interface

Jeffrey Leek
Johns Hopkins Bloomberg School of Public Health

What is the Command Line Interface?

Nearly ever computer comes with a CLI

  • Windows: Git Bash (See "Introduction to Git")
  • Mac/Linux: Terminal

What can the CLI do?

The CLI can help you:

  • Navigate folders
  • Create files, folders, and programs
  • Edit files, folders, and programs
  • Run computer programs

Basics of Directories

  • "Directory" is just another name for folder

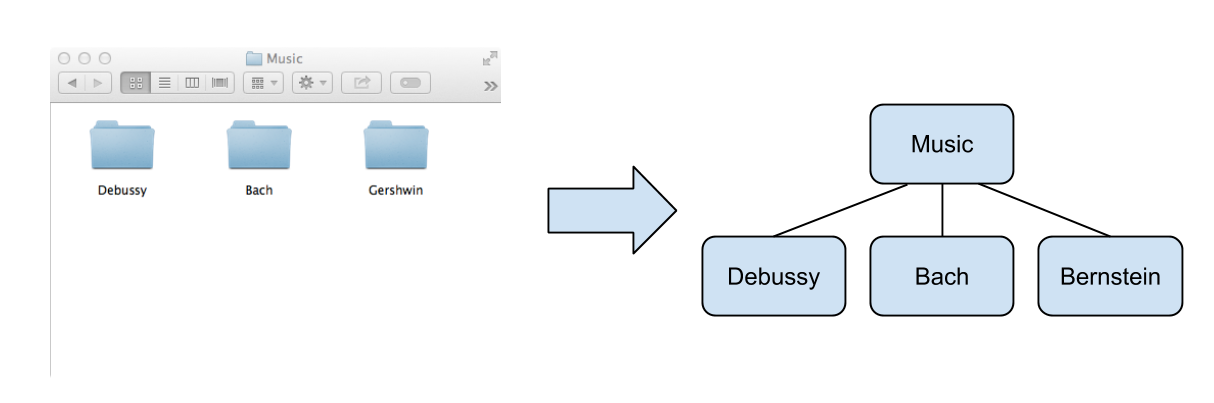

  • Directories on your computer are organized like a tree
  • Directories can be inside other directories
  • We can navigate directories using the CLI

Basics of Directories

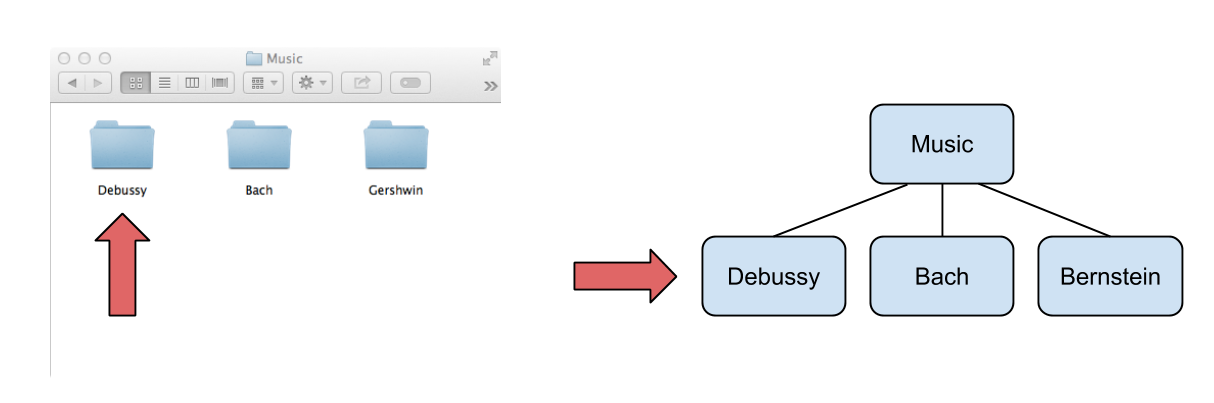

  • My "Debussy" directory is contained inside of my "Music" directory

Basics of Directories

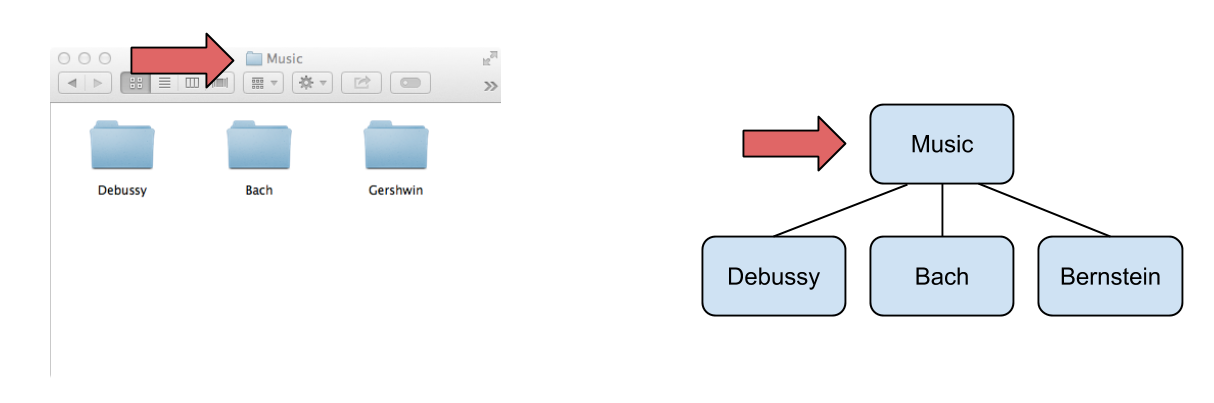

  • One directory "up" from my Debussy directory is my Music directory

Your computer's directory structure

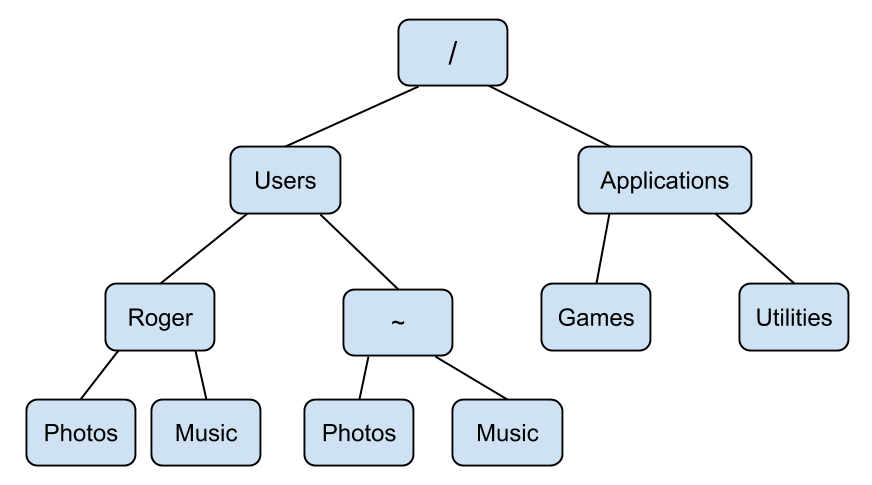

  • The directory structure on your computer looks something like this

Special directories: root

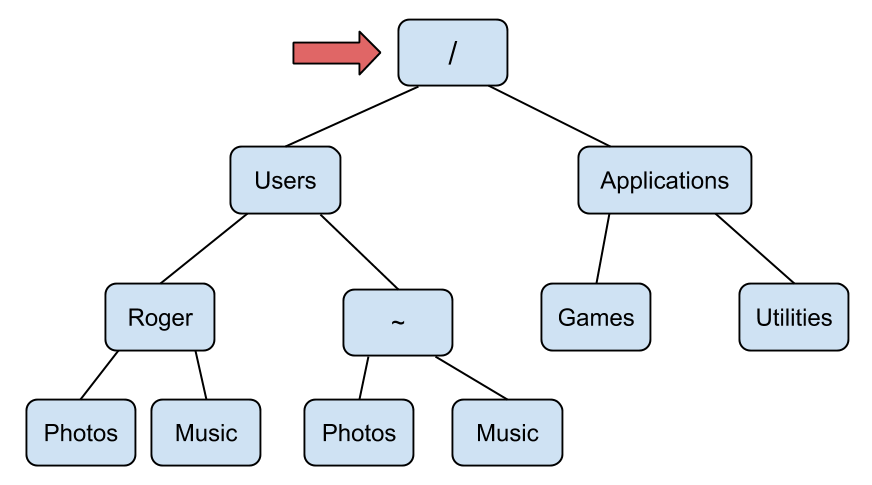

  • The directory at the top of the tree is called the root directory
  • The root directory contains all other directories
  • The name of this directory is represented by a slash: /

Special directories: home

  • Your home directory is represented by a tilde: ~
  • Your home directory usually contains most of your personal files, pictures, music, etc.
  • The name of your home directory is usually the name you use to log into your computer

Navigating directories with the CLI

Windows users:

  • Open the start menu
  • Search for Git Bash
  • Open Git Bash

Navigating directories with the CLI

Mac users:

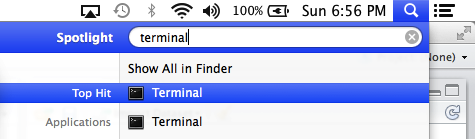

  • Open Spotlight
  • Search Terminal
  • Open Terminal

CLI Basics

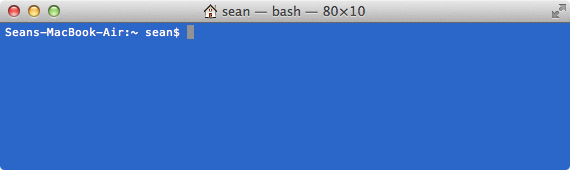

  • When you open your CLI you will see your prompt, which will looks something like the name of your computer, followed by your username, followed by a $
  • When you open your CLI you start in your home directory.
  • Whatever directory directory you're currently working with in your CLI is called the "working directory"

CLI Basics

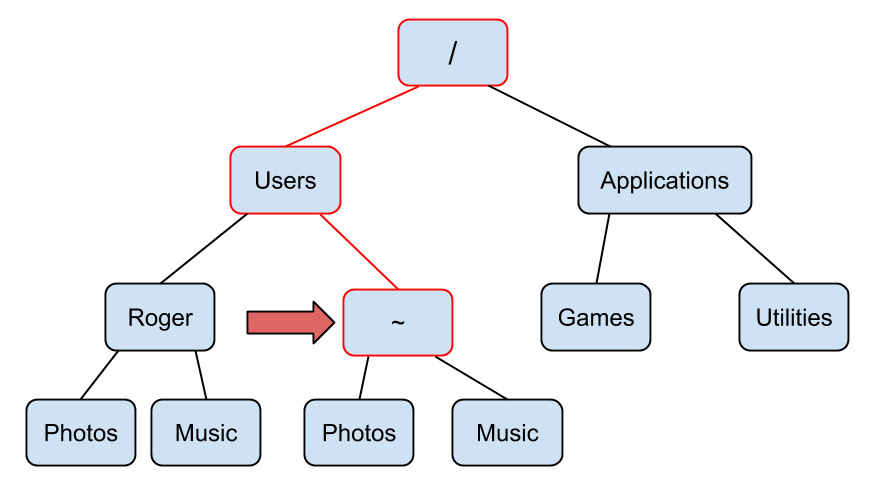

  • You can imagine tracing all of the directories from your root directory to the directory you're currently in.
  • This is called the "path" to your working directory.

CLI Basics

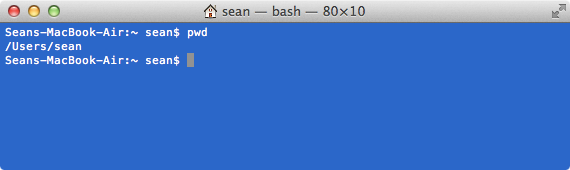

  • In your CLI prompt, type pwd and press enter.
  • This will display the path to you're working directory.
  • As you can see we get the prompt back after entering a command.

CLI Commands

  • You use the CLI prompt by typing in a command and pressing enter.
  • pwd can be used at any time to display the path to your working directory (pwd is an abbreviation for "print working directory")

CLI Commands

  • CLI commands follow this recipe: command flags arguments
  • command is the CLI command which does a specific task
  • flags are options we give to the command to trigger certain behaviors, preceded by a -
  • arguments can be what the command is going to modify, or other options for the command
  • Depending on the command, there can be zero or more flags and arguments
  • For example pwd is a command that requires no flags or arguments

CLI Commands

  • pwd displays the path to the current working directory
jeff$ pwd
/Users/jeff
jeff$

CLI Commands

  • clear will clear out the commands in your current CLI window
jeff$ pwd
/Users/jeff
jeff$ clear
jeff$

CLI Commands

  • ls lists files and folders in the current directory
  • ls -a lists hidden and unhidden files and folders
  • ls -al lists details for hidden and unhidden files and folders
  • Notice that -a and -l are flags (they're preceded by a -)
  • They can be combined into the flag: -al
jeff$ ls
Desktop   Photos   Music
jeff$ ls -a
Desktop   Photos   Music  .Trash  .DS_Store
jeff$

CLI Commands

  • cd stands for "change directory"
  • cd takes as an argument the directory you want to visit
  • cd with no argument takes you to your home directory
  • cd .. allows you to chnage directory to one level above your current directory
jeff$ cd Music/Debussy
jeff$ pwd
/Users/jeff/Music/Debussy
jeff$ cd ..
jeff$ pwd
/Users/jeff/Music
jeff$ cd
jeff$ pwd
/Users/jeff
jeff$

CLI Commands

  • mkdir stands for "make directory"
  • Just like: right click -> create new folder
  • mkdir takes as an argument the name of the directory you're creating
jeff$ mkdir Documents
jeff$ ls
Desktop   Photos  Music   Documents
jeff$ cd Documents
jeff$ pwd
/Users/jeff/Documents
jeff$ cd
jeff$

CLI Commands

  • touch creates an empty file
jeff$ touch test_file
jeff$ ls
Desktop   Photos  Music   Documents   test_file
jeff$

CLI Commands

  • cp stands for "copy"
  • cp takes as its first argument a file, and as its second argument the path to where you want the file to be copied
jeff$ cp test_file Documents
jeff$ cd Documents
jeff$ ls
test_file
jeff$ cd ..
jeff$

CLI Commands

  • cp can also be used for copying the contents of directories, but you must use the -r flag
  • The line: cp -r Documents More_docs copies the contents of Documents into More_docs
jeff$ mkdir More_docs
jeff$ cp -r Documents More_docs
jeff$ cd More_docs
jeff$ ls
test_file
jeff$ cd ..
jeff$

CLI Commands

  • rm stands for "remove"
  • rm takes the name of a file you wish to remove as its argument
jeff$ ls
Desktop   Photos  Music   Documents   More_docs   test_file
jeff$ rm test_file
jeff$ ls
Desktop   Photos  Music   Documents   More_docs
jeff$

CLI Commands

  • You can also use rm to delete entire directories and their contents by using the -r flag
  • Be very careful when you do this, there is no was to undo an rm
jeff$ ls
Desktop   Photos  Music   Documents   More_docs
jeff$ rm -r More_docs
jeff$ ls
Desktop   Photos  Music   Documents
jeff$

CLI Commands

  • mv stands for "move"
  • With mv you can move files between directories
jeff$ touch new_file
jeff$ mv new_file Documents
jeff$ ls
Desktop   Photos  Music   Documents
jeff$ cd Documents
jeff$ ls
test_file   new_file
jeff$

CLI Commands

  • You can also use mv to rename files
jeff$ ls
test_file   new_file
jeff$ mv new_file renamed_file
jeff$ ls
test_file renamed_file
jeff$

CLI Commands

  • echo will print whatever arguments you provide
jeff$ echo Hello World!
Hello World!
jeff$

CLI Commands

  • date will print today's date
jeff$ date
Mon Nov  4 20:48:03 EST 2013
jeff$

Summary of Commands

  • pwd
  • clear
  • ls
  • cd
  • mkdir
  • touch
  • cp
  • rm
  • mv
  • date
  • echo
